60227 IEC 10 Hook Up Wire For Home Wiring | PVC Sheathed Multi Wire Construction

60227 IEC 10 Hook Up Wire For Home Wiring | PVC Sheathed Multi Wire

How we make 60227 IEC 10 300/500V

1. Purchase Copper Bar/Rod
2. Copper Drawing
3. Insulation Extruded
4. Sheath Extruded
5. Coiling
6. Packaging

BASIC INFORMATION

Code Name

60227 IEC 10

Rated Voltage (Uo/U)

300/500V

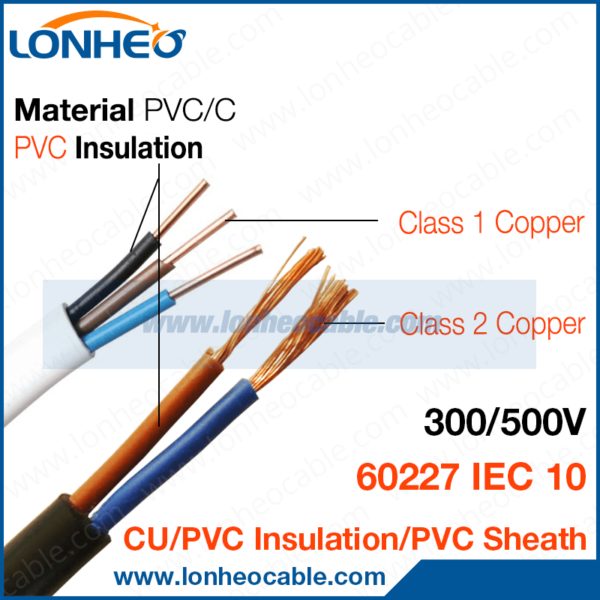

Cable Structure

CU/PVC Insulation/PVC Sheath

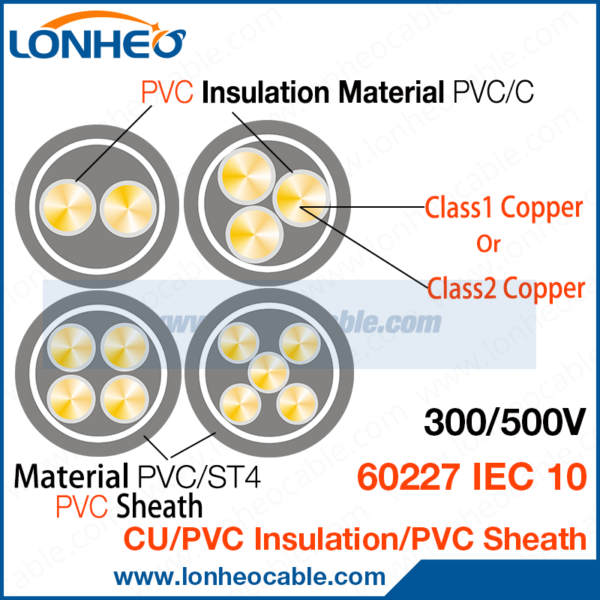

CONSTRUCTION

Conductor

Number of cores:2,3,4 or 5

The conductors shall comply with the requirement given in IEC 60228 for class 1 or 2.

– class 1 for solid conductors;

– class 2 for stranded conductors;

Insulation

PVC(Polyvinyl Chloride) Type PVC/C according to IEC

Sheath

PVC(Polyvinyl Chloride) Type PVC/ST4 according to IEC

CHARACTERISTICS

Conductor temperature

Maximum conductor temperature in normal use: 70℃

Installation temperature

Ambient temperature under installation shall not be below 0℃

Minimum bending radius

The bending radius of cable: (D-Diameter of cable)

D≤25mm——————≥4D

D＞25mm——————≥6D

Nominal Cross Sectional Area of Conductor	Class of conductor	Nominal Insulation Thickness	Max.Overall Diameter	Max.D.C.Resistance at 20 ℃ (Ω/km)		Min.Insulation Resistance at 70 ℃
(mm2)	/	(mm)	(mm)	Plain	Metal-coated	(Ω/km)
2x1.5	1	0.7	10	12.1	12.2	0.011
2x1.5	2	0.7	10.5	12	12.2	0.01
2x2.5	1	0.8	11.5	7.41	7.56	0.01
2x2.5	2	0.8	12	7.41	7.56	0.009
2x4	1	0.8	12.5	4.61	4.7	0.0085
2x4	2	0.8	13	4.61	4.7	0.0077
2x6	1	0.8	13.5	3.08	3.11	0.007
2x6	2	0.8	14	3.08	3.11	0.0065
2x10	1	1	16.5	1.83	1.84	0.007
2x10	2	1	17.5	1.83	1.84	0.0065
2x16	1	1	20	1.15	1.16	0.0052
2x25	2	1.2	24	0.727	0.734	0.005
2x35	1	1.2	27.5	0.524	0.529	0.0044
3x1.5	2	0.7	10.5	12.1	12.2	0.011
3x1.5	1	0.7	11	12.1	12.2	0.01
3x2.5	2	0.8	12	7.41	7.56	0.01
3x2.5	1	0.8	12.5	7.41	7.56	0.009
3x4	2	0.8	13	4.61	4.7	0.0085
3x4	1	0.8	13.5	4.61	4.7	0.0077
3x6	2	0.8	14.5	3.08	3.11	0.007
3x6	1	0.8	15.5	3.08	3.11	0.0065
3x10	2	0.1	17.5	1.83	1.84	0.007
3x10	1	1	19	1.83	1.84	0.0065
3x16	2	1	21.5	1.15	1.16	0.0052
3x25	1	1.2	26	0.727	0.734	0.005
3x35	2	1.2	29	0.524	0.529	0.0044
4x1.5	2	0.7	11.5	12.1	12.2	0.011
4x1.5	1	0.7	12	12.1	12.2	0.01
4x2.5	2	0.8	13	7.41	7.56	0.01
4x2.5	1	0.8	13.5	7.41	7.56	0.009
4x4	2	0.8	14.5	4.61	4.7	0.0085
4x4	1	0.8	15	4.61	4.7	0.0077
4x6	2	0.8	16	3.08	3.11	0.007
4x6	1	0.8	17	3.08	3.11	0.0065
4x10	2	1	19	1.83	1.84	0.007
4x10	1	1	20.5	1.83	1.84	0.0065
4x16	2	1	23.5	1.15	1.16	0.0052
4x25	1	1.2	28.5	0.727	0.734	0.005
4x35	2	1.2	32	0.524	0.529	0.0044
5x1.5	1	0.7	12	12.1	12.2	0.011
5x1.5	2	0.7	12.5	12.1	12.2	0.01
5x2.5	1	0.8	14	7.41	7.56	0.01
5x2.5	2	0.8	14.5	7.41	7.56	0.009
5x4	1	0.8	16	4.61	4.7	0.0085
5x4	2	0.8	17	4.61	4.7	0.0077
5x6	1	0.8	17.5	3.08	3.11	0.007
5x6	2	0.8	18.5	3.08	3.11	0.0065
5x10	1	1	21	1.83	1.84	0.007
5x10	2	1	22	1.83	1.84	0.0065
5x16	2	1	26	1.15	1.16	0.0052
5x25	2	1.2	31.5	0.727	0.734	0.005
5x35	2	1.2	35	0.524	0.529	0.0044
