BASIC INFORMATION
Code Name
60227 IEC 52
Rated Voltage (Uo/U)
300/300V

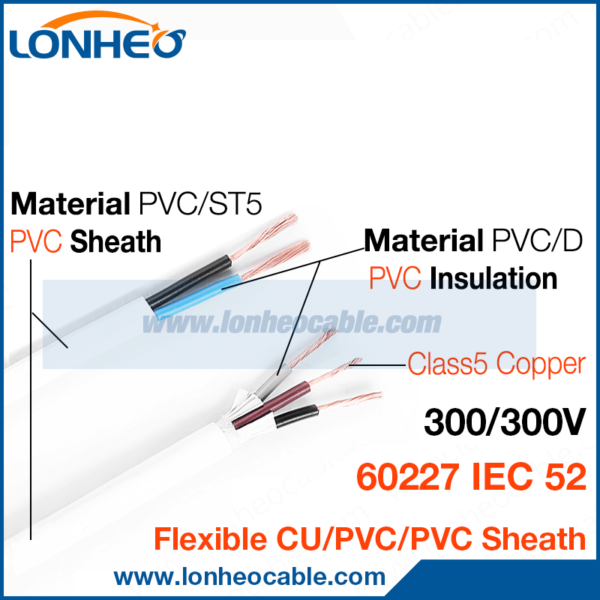

Cable Structure
Flexible CU/PVC Insulation/PVC Sheath

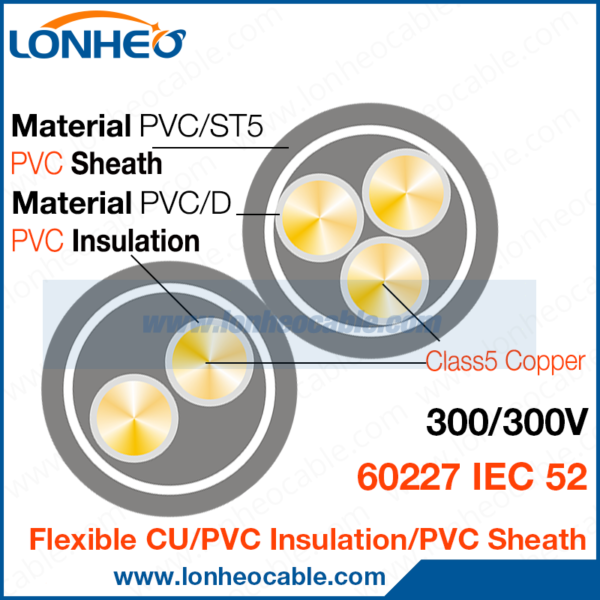

CONSTRUCTION
Conductor
Number of conductors:2,3 or other multi-core on request.
The conductors shall comply with the requirement given in IEC 60228 for class 5.
Assembly of cores
Circular cord: the cores shall be twisted together.
Flat cord: the cores shall be laid parallel.
Insulation
PVC(Polyvinyl Chloride) Type PVC/D according to IEC
Sheath
PVC(Polyvinyl Chloride) Type PVC/ST5 according to IEC
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 70℃
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
D≤25mm——————≥4D
D＞25mm——————≥6D
