60227 IEC 53 Hook Up Wire For Home | PVC Sheathed Flexible Multi Wire Construction

60227 IEC 53 Hook Up Wire For Home | PVC Sheathed Flexible Multi Wire

How we make 60227 IEC53 300/500V

1. Purchase Copper Bar/Rod
2. Copper Drawing
3. Insulation Extruded
4. Sheath Extruded
5. Coiling
6. Packaging

BASIC INFORMATION

Code Name

60227 IEC 53

Rated Voltage (Uo/U)

300/500V

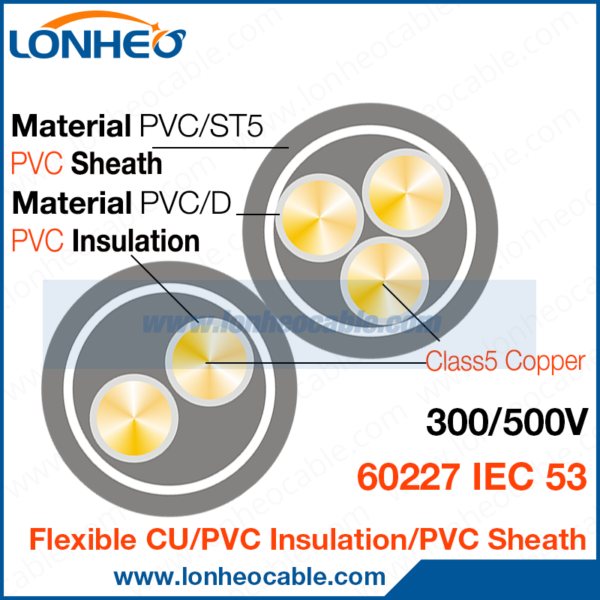

Cable Structure

Flexible CU/PVC Insulation/PVC Sheath

CONSTRUCTION

Conductor

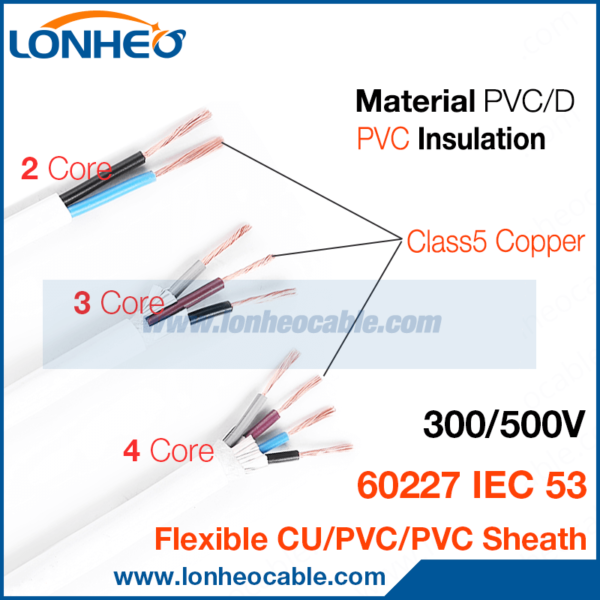

Number of conductors:2,3,4,5 or other multi-core on request.

The conductors shall comply with the requirement given in IEC 60228 for class 5.

Assembly of cores

Circular cord: the cores shall be twisted together.

Flat cord: the cores shall be laid parallel.

Insulation

PVC(Polyvinyl Chloride) Type PVC/D according to IEC

Sheath

PVC(Polyvinyl Chloride) Type PVC/ST5 according to IEC

CHARACTERISTICS

Conductor temperature

Maximum conductor temperature in normal use: 70℃

Installation temperature

Ambient temperature under installation shall not be below 0℃

Minimum bending radius

The bending radius of cable: (D-Diameter of cable)

D≤25mm——————≥4D

D＞25mm——————≥6D

Nominal Cross Sectional Area of Conductor	Nominal Insulation Thickness	Nominal Sheath Thickness	Max.Overall Diameter	Max.D.C.Resistance at 20 ℃ (Ω/km)		Min.Insulation Resistance at 70 ℃
(mm2)	(mm)	(mm)	(mm)	Plain	Metal-coated	(Ω/km)
2x0.75	0.6	0.8	7.2 or 4.5x7.2	26	26.7	0.011
2x1	0.6	0.8	7.5 or 4.7x7.5	19.5	20	0.01
2x1.5	0.7	0.8	8.6	13.3	13.7	0.01
2x2.5	0.8	1	10.6	7.98	8.21	0.009
2x4	0.8	1.1	12.4	4.95	5.09	0.007
2x6*	0.8	1.2	14.6	3.3	3.39	0.006
3x0.75	0.6	0.8	7.6	26	26.7	0.011
3x1	0.6	0.8	8	19.5	20	0.01
3x1.5	0.7	0.9	9.4	13.3	13.7	0.01
3x2.5	0.8	1.1	11.4	7.98	8.21	0.009
3x4	0.8	1.1	13.2	4.95	5.09	0.007
3x6*	0.8	1.2	15.6	3.3	3.39	0.006
4x0.75	0.6	0.8	8.3	26	26.7	0.011
4x1	0.6	0.9	9	19.5	20	0.01
4x1.5	0.7	1	10.5	13.3	13.7	0.01
4x2.5	0.8	1.1	12.5	7.98	8.21	0.009
4x4	0.8	1.1	14.4	4.95	5.09	0.007
4x6*	0.8	1.2	17.1	3.3	3.39	0.006
5x0.75	0.6	0.9	9.3	26	26.7	0.011
5x1	0.6	0.9	9.8	19.5	20	0.01
5x1.5	0.7	1.1	11.6	13.3	13.7	0.01
5x2.5	0.8	1.2	13.9	7.98	8.21	0.009
5x4	0.8	1.2	15.6	4.95	5.09	0.007
5x6*	0.8	1.3	18.5	3.3	3.39	0.006
